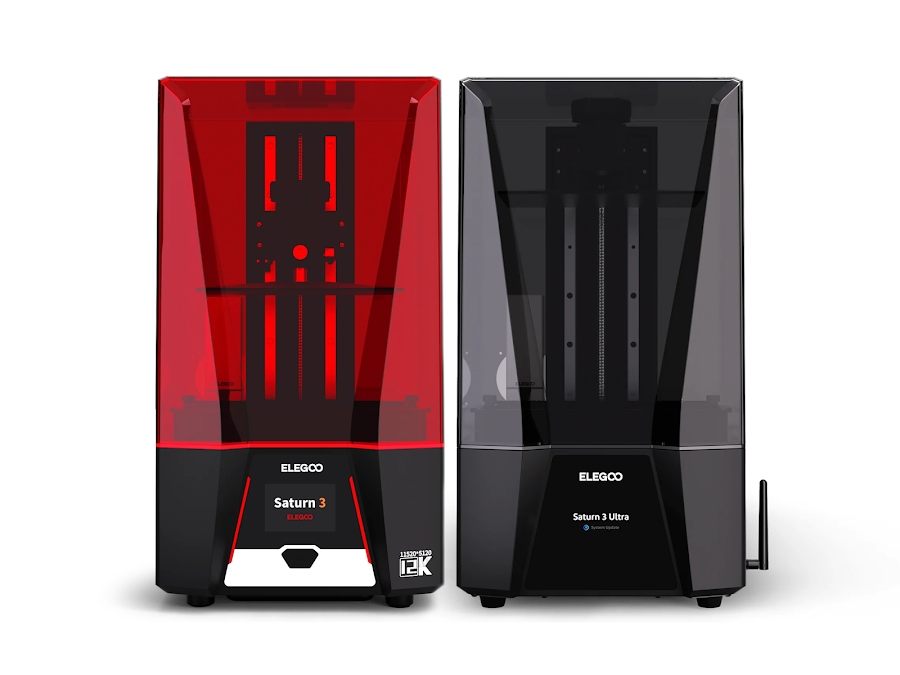

Elegoo Elegoo Saturn 3 Ultra 12K MSLA 3D Printer
The Elegoo Saturn 3 MSLA Resin 3D Printers delivers exceptionally detailed 3D printed models using an impressive 10-inch 12K mono LCD light source. It's available in 12K and Ultra 12K and features a laser-engraved build plate, a USB-powered air purifier, wireless file transfer capability (with the Ultra 12K), and more.
- Print Volume: 218x122x250mm³ (260mm for the Ultra 12K)
- Max Print Speed: 70mm/h (12K) / 150mm/h (Ultra 12K)
- XY Resolution: 19x24μm
To learn about available discounts, training, and maintenance options, please use the form below and a MatterHackers Expert will contact you within one business day. Alternatively, you can always feel free to give us a call at +1 (800) 613-4290 or email sales@matterhackers.com.
To get an instant quote, add everything you need to your cart, and click "Download as quote".
ELEGOO SATURN 3
ACHIEVE EXCEPTIONAL DETAILS
Produce intricate models with excellent sharpness and details on the Elegoo Saturn 3 Resin 3D Printer. Utilizing a 10inch 12K mono LCD screen, the Saturn 3 delivers impressive parts with smooth surfaces and sharp edges.
Key Features of the Elegoo Saturn 3 MSLA Resin 3D Printer:
- Print Volume
- 12K - 218x122x250 mm³
- Ultra 12K - 218x122x260 mm³
- Max Print Speed
- 12K - Up to 70mm/h
- Ultra 12K - Up to 150mm/h
- Light Source: 10" 12K mono LCD
- XY Resolution: 19×24μm
- Laser-engraved build plate
- Includes USB-powered air purifier
- Wireless file transfer capability on the Ultra 12K
- 4-point leveling system on the Ultra 12K
Easily produce models with ultimate printing precision and quality on the Elegoo Saturn 3 and Saturn Ultra which features an impressive 10" 12K mono LCD screen light source.
- XY Resolution: 19x24μm (11520 × 5120 voxels)
- Uses a COB + refractive light source
- 9H Tempered Glass for light source protection
SPACIOUS PRINT VOLUME
Expand your 3D printing capacity with the Elegoo Saturn 3 and Saturn 3 Ultra's spacious print volume.
- L x W: 218.88mm x 122.88mm
- Saturn 3 Height: 250mm
- Saturn 3 Ultra Height: 260mm
- Print larger models or larger batches of small models
ULTRA SPEED & POWER
The Elegoo Saturn 3 Ultra features an ACF release film to achieve up to a max print speed of 150mm/h. To keep up with these fast resin printing speeds, it thoughtfully features:
- Powerful Linux OS for quick, reliable Wi-Fi transfers
- Compatible with both 2.4G and 5G networks
- Enhanced stability with all-metal machine body
STEADY PRINTING
Dual Linear Rails on the Elegoo Saturn 3 and Saturn 3 Ultra ensures that the Z-axis movement is quieter, more stable, and precise, reducing riffles on final prints. Additionally, both have a laser-engraved build plate for excellent bed adhesion for even more printing stability.
- 12K utilizes a non-slip hexagon socket leveling screws for fast and easy handling
- Ultra 12K utilizes an integrated ball screw to balance out the high max print speeds of 150mm/h
MULTIPLE PRINT MODES
With VoxelDance Tango, the Elegoo Saturn 3 12K can print in 3 modes for improved printing efficiency.
- Static Mode for standard printing
- available in Smooth and High-Speed Mode
- When the cross-section of the printed model is small, print lifting speed is faster (print speed will decrease)
- Elegoo's self-developed GOO slicing format is compatible with multiple slicers
EXCELLENT PRINTING EXPERIENCE
The Elegoo Saturn 3 and Saturn 3 Ultra are strategically engineered to deliver a pleasant resin 3D printing experience with thoughtful features like:
- Effective heat dissipation
- Combines larger cooling fan with double heat-conducting copper tubes
- Also helps extend service life
- Odorless resin 3D printing
- USB-powered Air Purifier included
What Comes with the Elegoo Saturn 3 MSLA Resin 3D Printer?
| 1 | x | Elegoo Saturn 3 3D Printer |
| 1 | x | Air Purifier (USB-powered) |
| 1 | x | Accessory Box |
| 1 | x | User Manual |
What are the Differences Between the Elegoo Saturn 3 12K and Saturn 3 Ultra 12K?
 |
 |
|
|---|---|---|
| Model | Saturn 3 12K | Saturn 3 Ultra 12K |
| Price | $399 | $499 |
| Print Volume (L × W × H) |
218.88 × 122.88 × 250mm (8.62 × 4.84 × 9.84") |
218.88 × 122.88 × 260mm (8.62 × 4.84 × 10.24") |
| Display | 3.5" Touch Screen | 4" HD ISP Touch Screen |
| File Transfer | USB | Wi-Fi |
| Max Print Speed | 70mm/h | 150mm/h |
| Leveling System | Integrated Ball Screw (allows 4-point leveling) |
Non-slip Hexagon Socket Leveling Screws |
| ACF Release Liner Film | ✘ | ✔ |
| Linux OS with 4Gb RAM | ✘ | ✔ |
| VoxelDance Tango Software | ✔ | ✘ |
What are the Technical Specifications of the Elegoo Saturn 3 MSLA Resin 3D Printer?
| Saturn 3 12K | Saturn 3 Ultra 12K | |
|---|---|---|
| GENERAL | ||
| Technology | MSLA / LCD | MSLA / LCD |
| Machine Type | Resin 3D Printer | Resin 3D Printer |
| Assembly | Fully-Assembled | Fully-Assembled |
| Made in | China | China |
| PRINTING PARAMETERS | ||
| Print Volume (L × W × H) |
218.88 × 122.88 × 250mm (8.62" × 4.84" × 9.84") |
218.88 × 122.88 × 260mm (8.62" × 4.84" × 10.24") |
| Light Source | COB + Refractive Light Source | COB + Refractive Light Source |
| Light Wavelength | 405nm | 405nm |
| XY Resolution | 19×24μm (11520 × 5120) | 19×24μm (11520 × 5120) |
| Max Print Speed | 70mm/h | 150mm/h |
| ADDITIONAL FEATURES | ||
| Enclosed | Yes | Yes |
| Build Surface Texture | Laser Engraved | Laser Engraved |
| Air Purifier | Included, USB-powered | Included, USB-powered |
| Z-Axis | Dual Linear Guide Rail | Dual Linear Guide Rail |
| Leveling System | Integrated Ball Screw | Non-slip Hexagon Socket Leveling Screws |
| Linux OS w/ 4 Gb RAM | ✘ | ✔ |
| Wi-Fi File Transfer | ✘ | ✔ |
| ACF Release Liner Film | ✘ | ✔ |
| VoxelDance Tango Software | ✔ | ✘ |
| COMMUNICATION | ||
| Display | 3.5" Touch Screen | 4" HD ISP Touch Screen |
| Connectivity | USB | Wi-Fi |
| SOFTWARE | ||
| Compatible Slicers | ChituBox, Lychee, VoxelDance Tango |
ChituBox, Lychee |
| Compatible OS | Windows 64, Mac OS, Linux | Windows 64, Mac OS, Linux |
| Supported File Format(s) | STL | STL |
| WARRANTY | ||
| Warranty Period | 1 Year | 1 Year |
